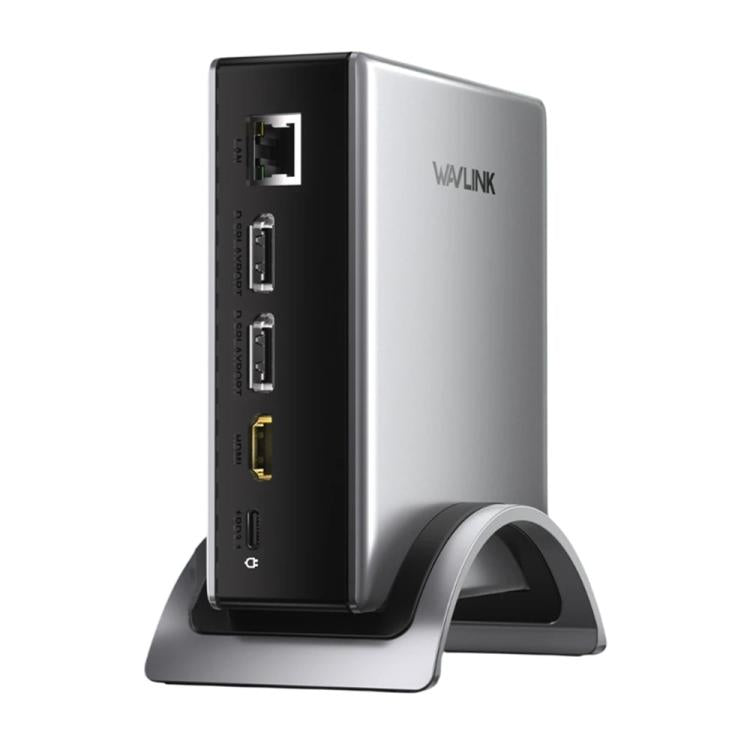

WAVLINK UMD27PRO Support 8K 30Hz 4K 144Hz 140W HUB Docking Station, US Plug, EU Plug, UK Plug, AU Plug

1. Triple 8K Display Support: Equipped with HD + 2xDP ports, supports triple display output up to 8K@30Hz or 4K@144Hz, ideal for multitasking, design, and entertainment.

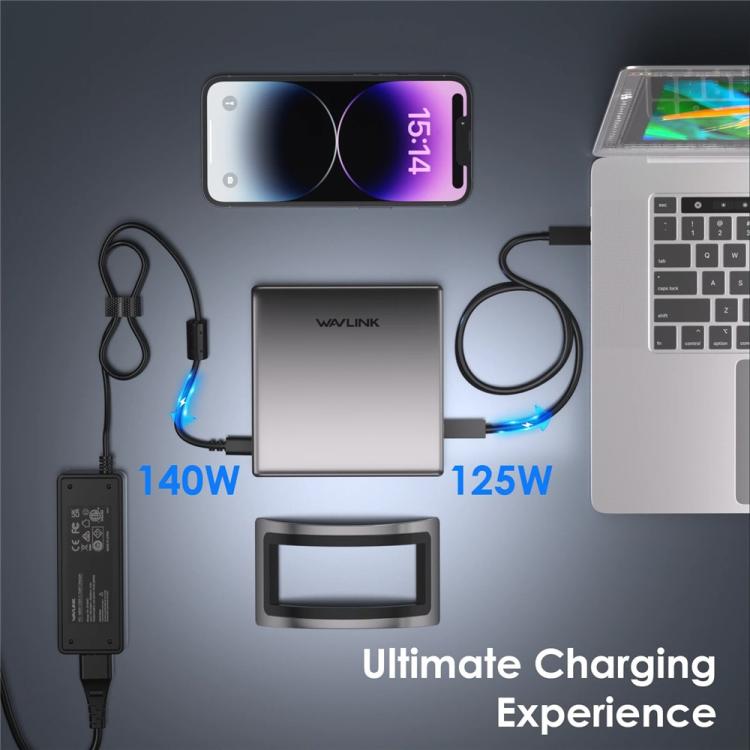

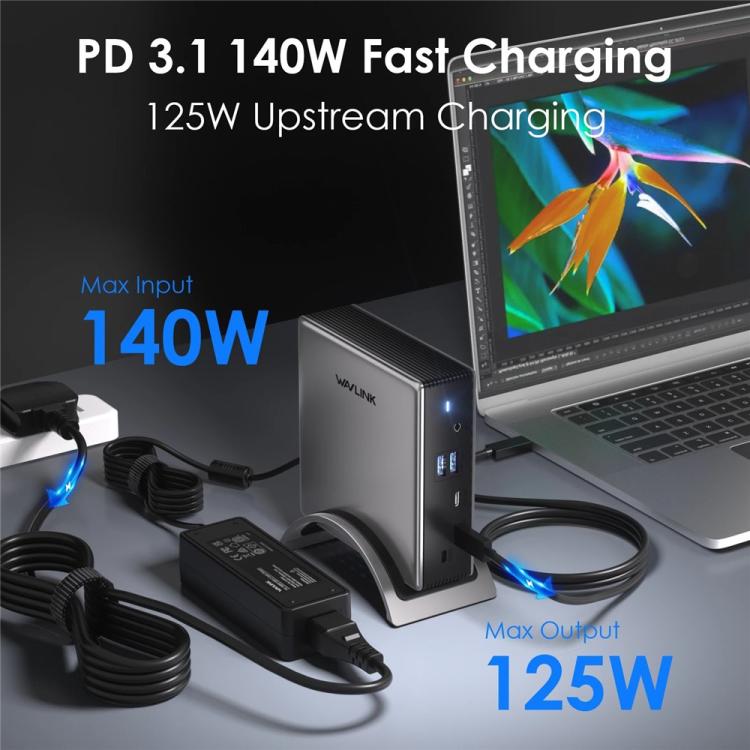

2. Powerful 140W PD Charging: USB-C PD 3.1 input delivers up to 140W, with 125W upstream charging to laptops for reliable all-day productivity.

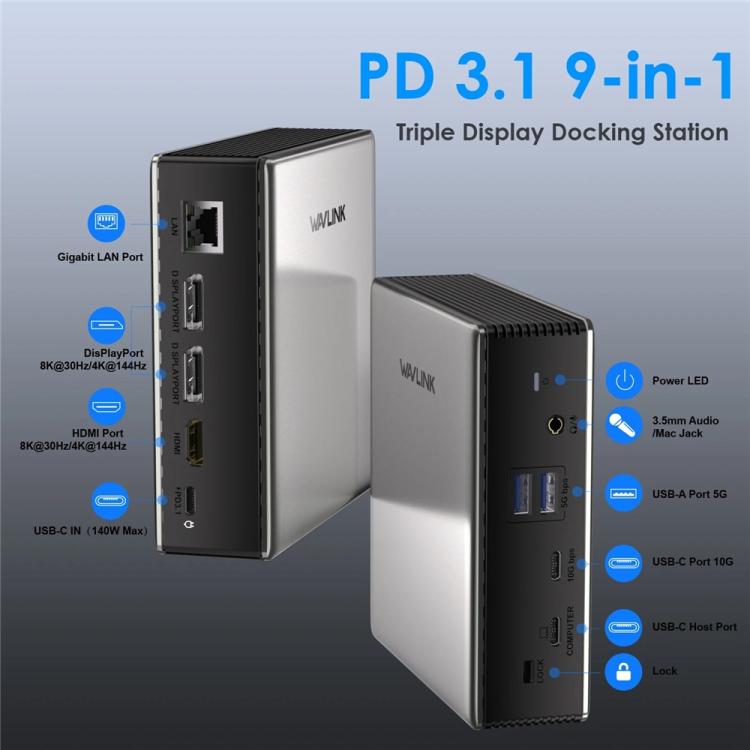

3. 9-in-1 Multifunction Hub: Includes Gigabit Ethernet, 2xUSB-A (5Gbps), 1xUSB-C (10Gbps), audio TRRS jack, ensuring faster transfer speeds and versatile connectivity.
4. HDCP & Flexible Modes: Supports HDCP for streaming Netflix, Disney+, Prime Video, and Blu-ray content; rotation and flip mode give flexible viewing options.
5. Wide Compatibility: Compatible with Windows, macOS, Chrome OS, Linux, iPadOS, HarmonyOS, and Android/iOS devices (with OTG), perfect for laptops, tablets, and smartphones.

Specifications:
1. Video Output: HD + 2xDP, supports up to 8K (7680x4320)@30Hz or 4K (3840x2160)@144Hz triple display
2. Power Delivery: 1x USB-C PD 3.1 input, up to 140W (supports 125W host charging)
3. Ethernet Port: 1x Gigabit RJ45, backward compatible with 10/100Mbps
4. USB Ports: 2x USB-A (5Gbps, backward compatible with USB 2.0/1.1)
5. USB-C Data Port: 1x USB-C (10Gbps, backward compatible with USB 3.0/2.0/1.1)
6. Audio: 1x TRRS 4-pole headphone jack for audio in/out
7. Supported Systems: Windows 11/10/8.1/8/7, macOS 11 or later, Chrome OS, Linux, iPadOS, HarmonyOS, Android, iOS
8. Compatible Devices: USB-C desktops, laptops, tablets, smartphones (with OTG function, full-featured USB-C required)

Note:
1. The host device’s USB-C port must support both video output and charging to fully utilize the dock’s functions.
2. For Windows laptops, ensure your graphics card supports four displays; otherwise, you may need to disable the built-in screen.

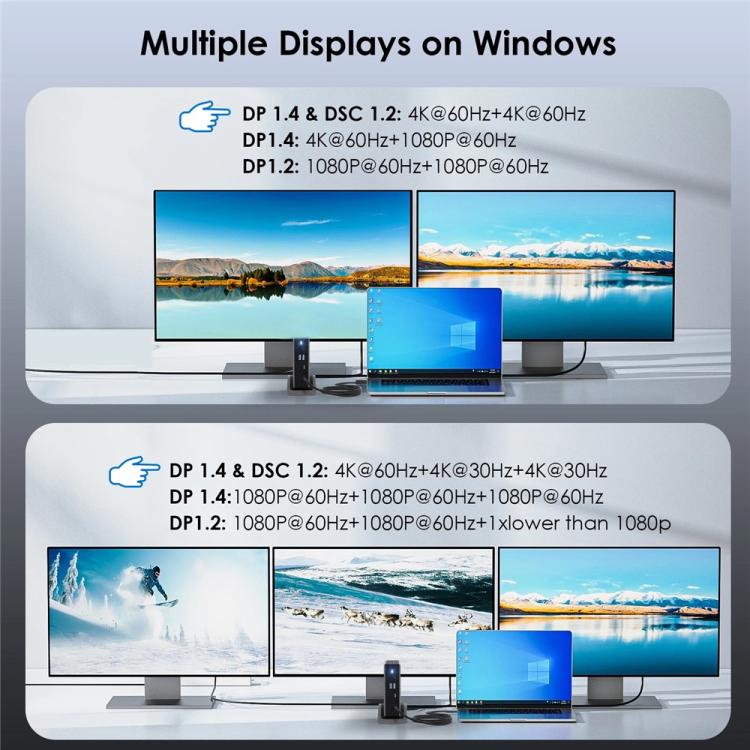

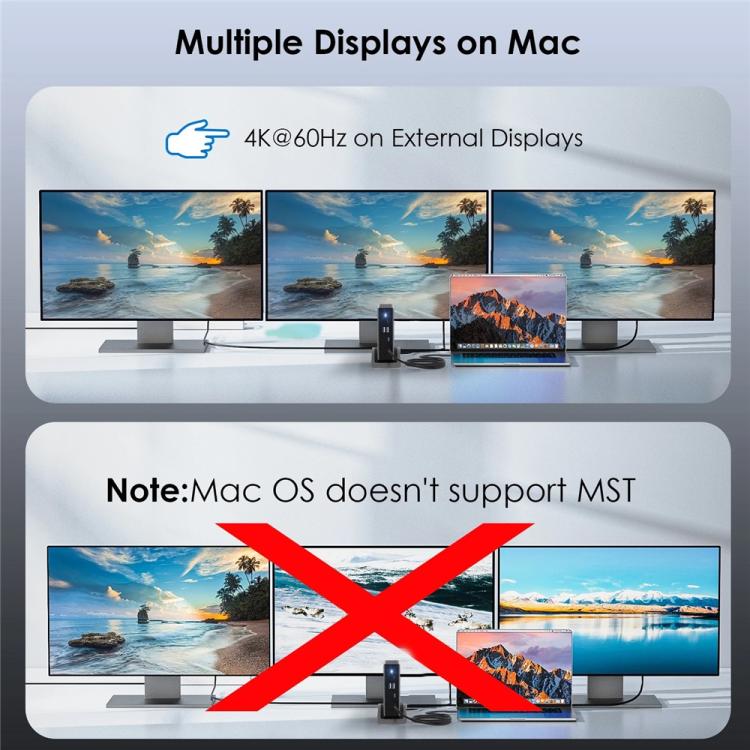

3. Windows supports triple extended display (ABCD); macOS supports one extended + mirrored screens (ABBB).
4. Rotation and flip display modes are supported on both Windows and macOS.
5. Supports HDCP, allowing playback of Netflix, Disney+, Prime Video, and Blu-ray content.
6. For smartphones/tablets, the USB-C port must support OTG function.
