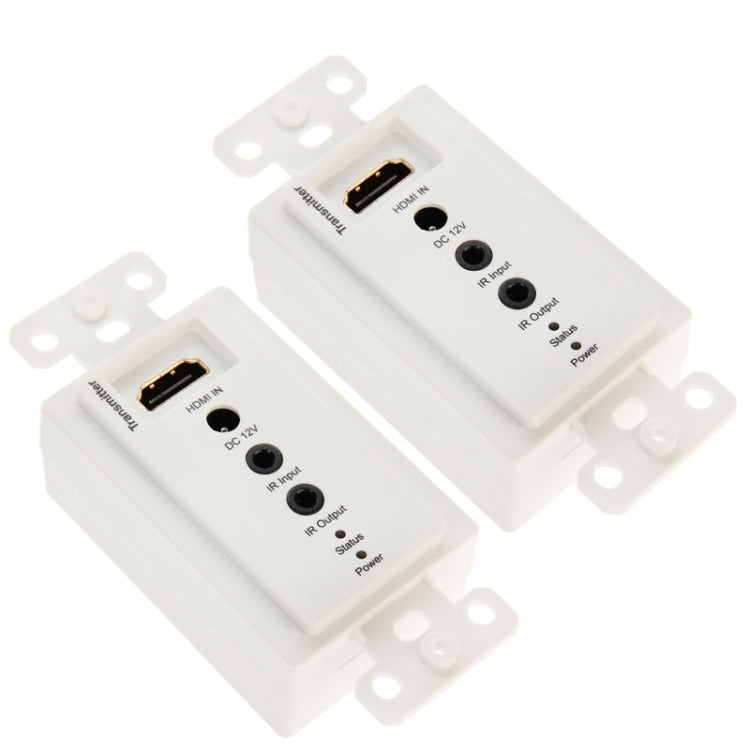

About the product1. Extending distance is 50 meters at resolutions 1080P 3D or 1920x1200 60fs, and 80 meters at 1080i/720P through single CAT5e cable
2. Support audio formats, Dolby True HD, DTS-master, etc
3. Support 3D signals (all 7 formats), such as Frame Packing, Side-by-Side, Top-to-Bottom, etc.
4. Support EDID call back
5. Support CEC pass through
6. VESA DDC and hot swap technology (HPD)
7. Support power over UTP cable, single 12V DC power supply from any side of TX or RX

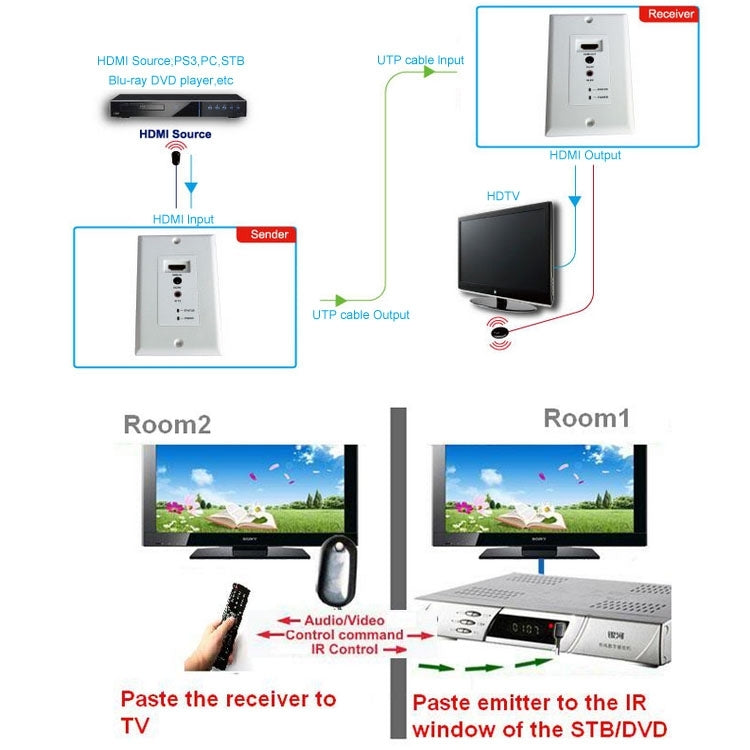

8. Bi-direction remote IR (RX->TX and TX->RX)
9. Both HDMI input and output are compatible with HDCP 1.2
10. Be compatible with DVI 1.0
11. Support cascade to enhance extending distance
Specification:
| General |
| Frequency Bandwidth |
4.95Gbps |
| Input/ Output TMDS Signal |
1.2 volts (point to point) |
| Input/ Output DDC Signal |
5 volts (point to point) |
| Operating Temperature |
0 ~ 40 Degree Celsius |
| Power Consumption |
<3.5W TX, <2.5W RX |
|

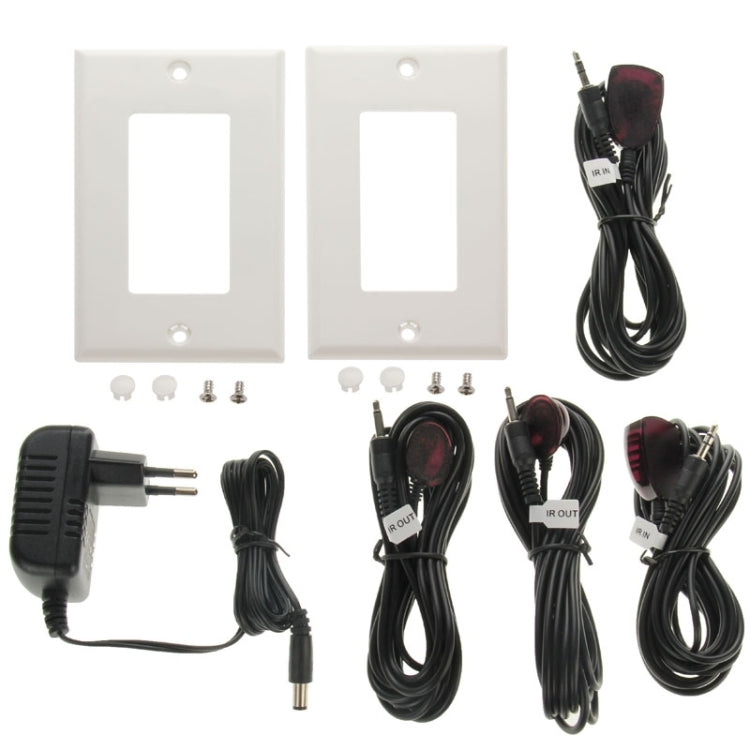

| Package Include |
| Package Contents |
1 x Power Adapter
1 x User Manual

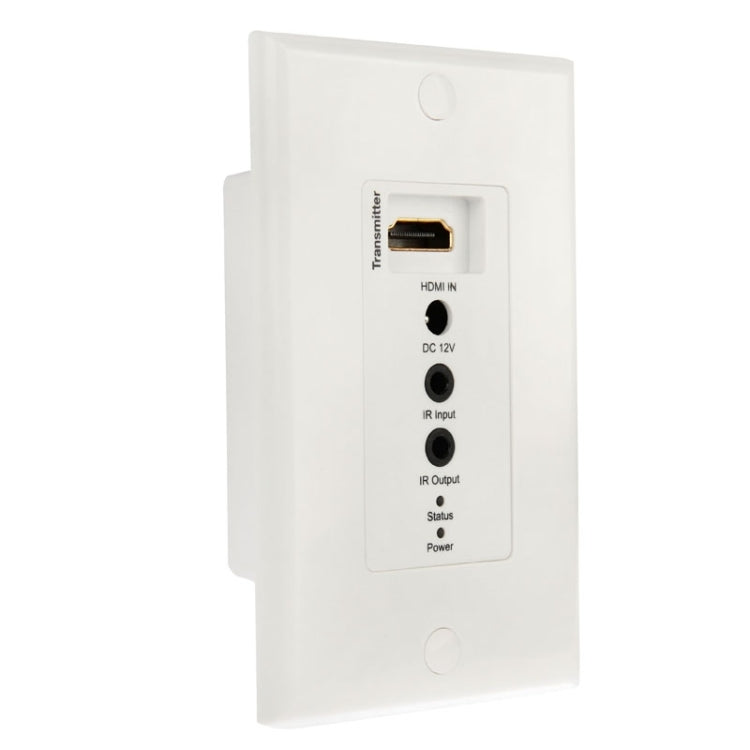

1 x Transmitter
1 x Receiver
2 x IR IN Cables
2 x IR OUT Cables |
|
| Package Weight |
| One Package Weight |
0.56kgs / 1.23lb |
| One Package Size |
24.3cm * 15.3cm * 6.5cm / 9.57inch * 6.02inch * 2.56inch |
| Carton Weight |
11.60kgs / 25.57lb |
| Carton Size |
50cm * 35cm * 35cm / 19.69inch * 13.78inch * 13.78inch |
| Loading Container |
20GP: 435 cartons * 20 pcs = 8700 pcs
40HQ: 1010 cartons * 20 pcs = 20200 pcs
|
|
